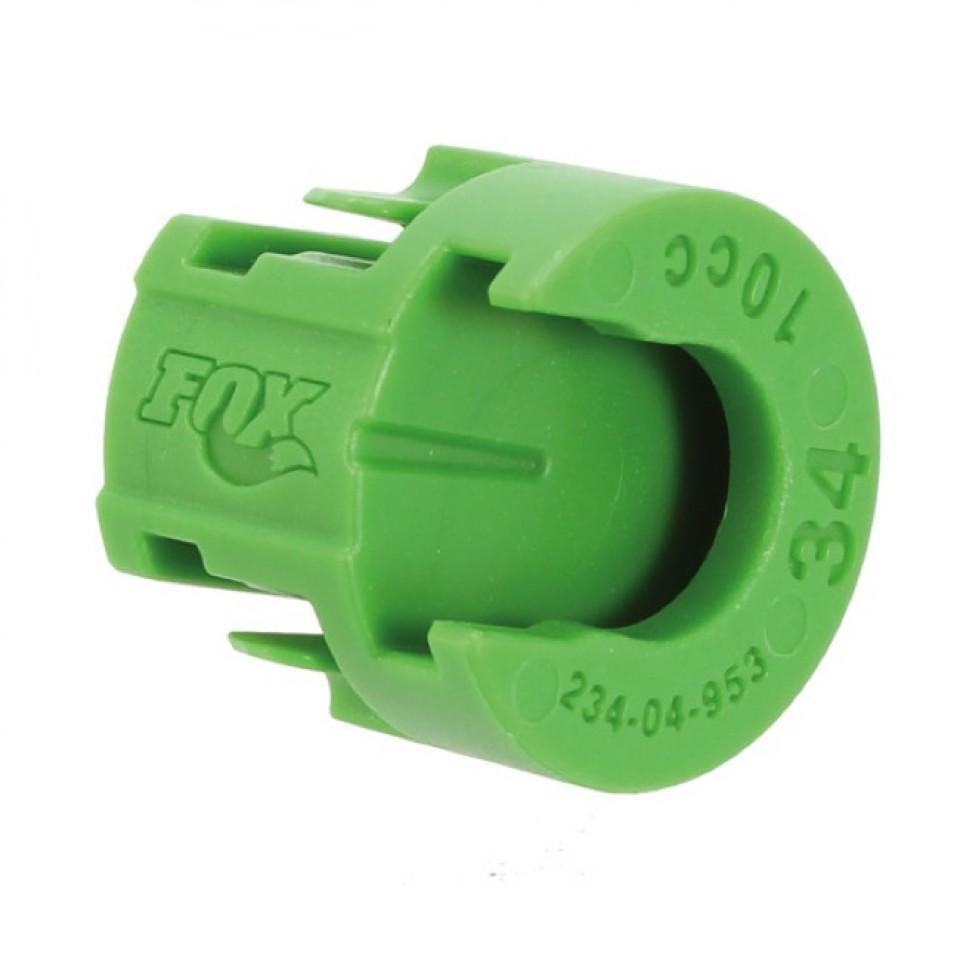

Fox Racing TopCap Volume Reducer

Volume spacers are an internal adjustment that allows you to change the amount of mid stroke and bottom out resistance.

For example:

• If you have set your sag correctly and are using full travel (bottoming out) too easily, then you could install one or more spacers to increase bottom out resistance.
• If you have set your sag correctly and are not using full travel, then you could remove one or more spacers to decrease bottom out resistance.

Different forks need different spacers, contact us if you need help deciding which spacers you need.

Part numbers:

• 32mm 8cc – 234-04-811 (2016 onwards)
• 34mm 10cc – 234-04-953 (2016 onwards)
• 36mm 10cc – 234-04-736 (2018 onwards, not suitable for Rhythm or e-bike 36 models)
• 38mm 10cc – 234-44-189 (2021 onwards)
• 40mm 10cc – 234-04-726 (2016 onwards)

Note: Sold individually
